Chlodnica
Frostbite : FB216
Nr artykułu: FRBFB216
* 100 Percent TIG Welded Seams * Aircraft Quality Aluminum Core/Fittings/Tanks * Billet Aluminum Filler Neck And OEM Brass Petcock * More Cooling Fins Per Inch For More Efficient Cooling * Custom Frostbite High Performance 16 lb. Radiator Cap * Polished Top And Tanks For Custom Show Appearance * Applications Supporting Up To 1000+ Horsepower

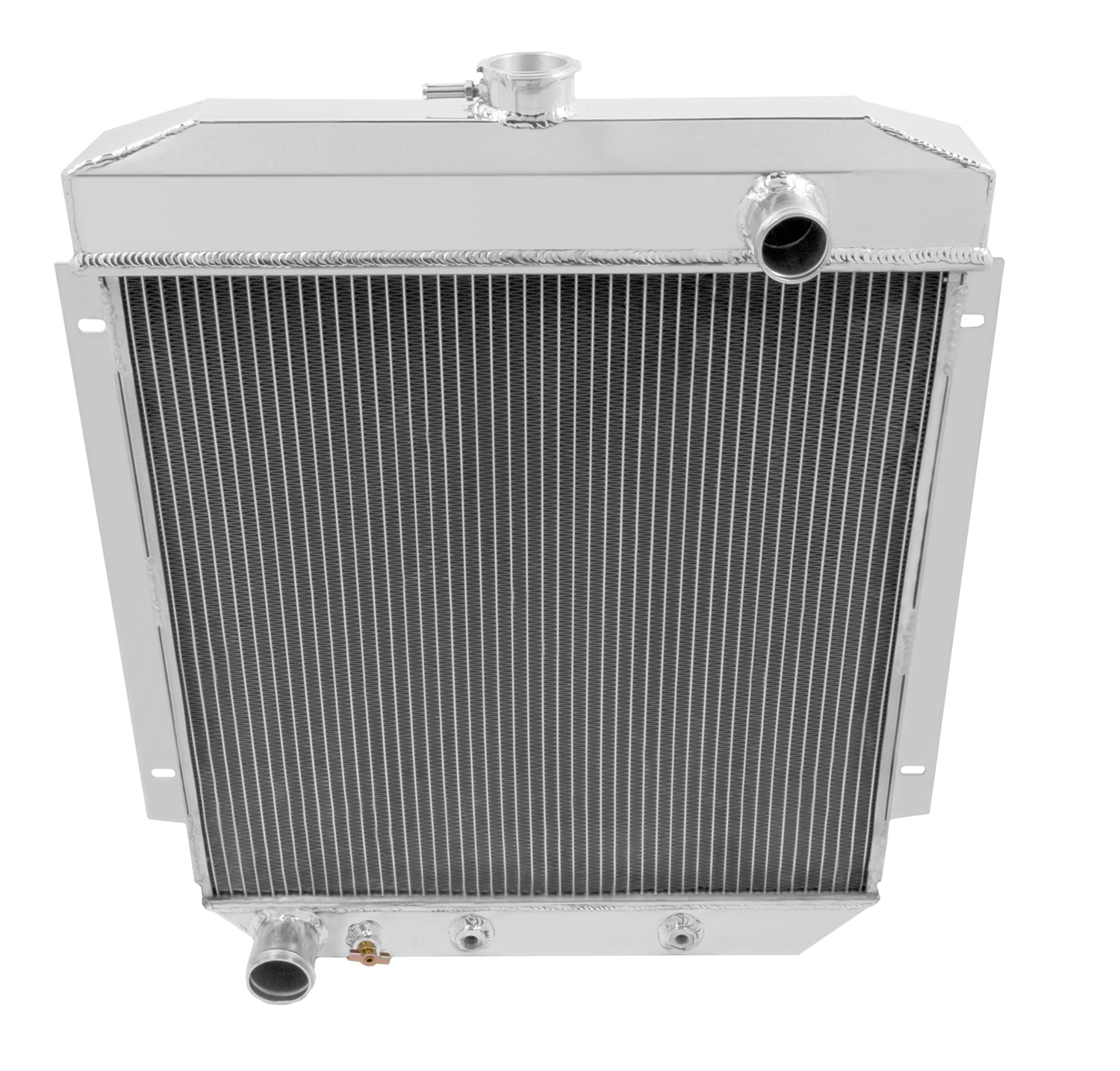

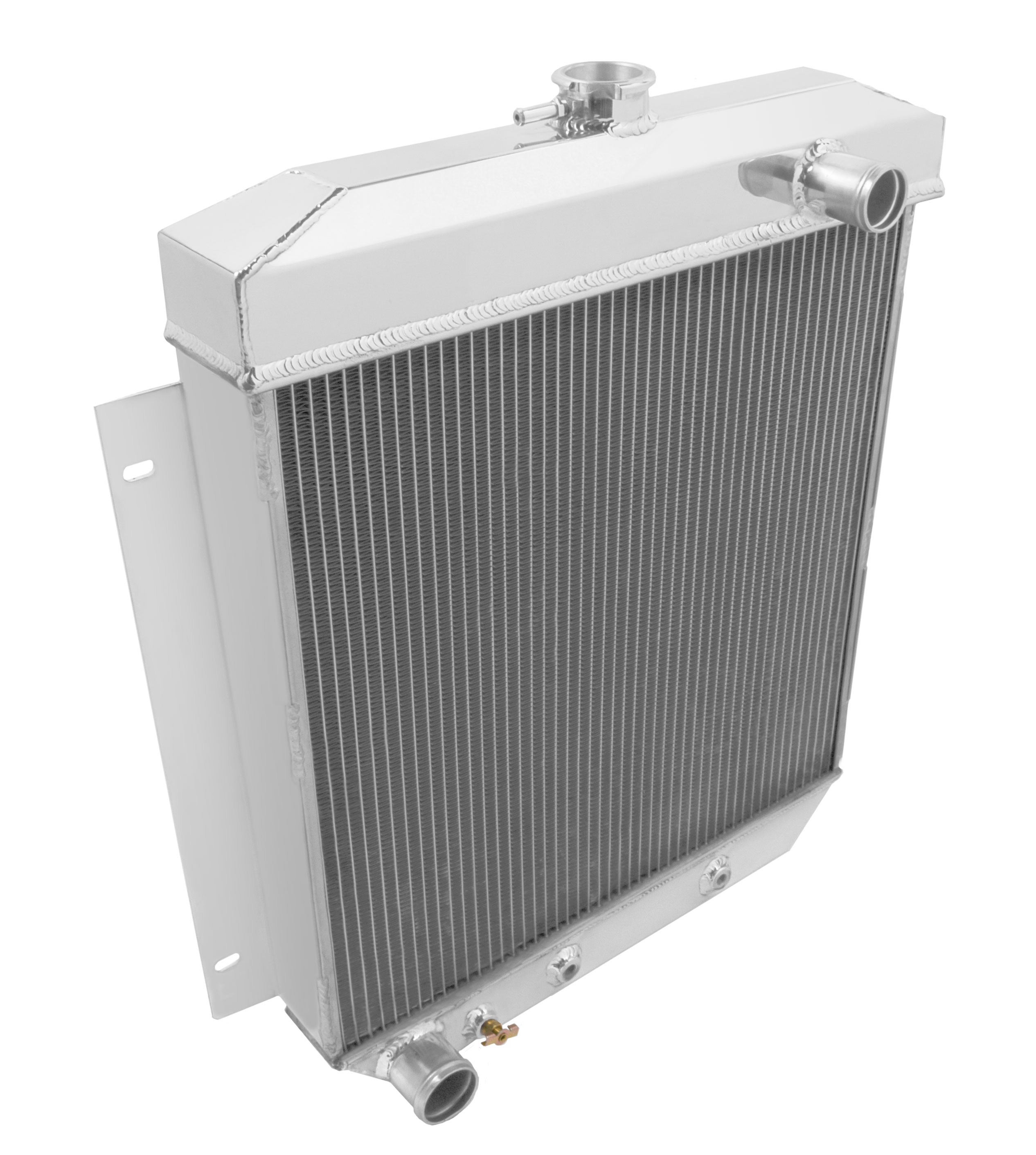

Aluminum Radiator; 2-Row; 1 1/2 in. Inlet; 1 3/4 in. Outlet; 25 1/8 x 22 5/8 in. Overall; Bracket Mount;
- Cooling Row Diameter: 0.750 in.
- Core Dimension: 18.500 in. x 18.750 in.
- Core Thickness: 1.570 in.
- Flow Style: Down Flow
- Hose Location Inlet: Passenger
- Hose Location Outlet: Driver
- Inlet Diameter: 1.500 in.
- Item Height: 25.125 in.
- Material: Aluminum
- Mount Type: Bracket Mount
- Mounting: Bracket Mount
- Outlet Diameter: 1.750 in.
- Overall Dimension: 25.125 in. x 22.625 in.
- Overall Length: 22.625 in.
- Radiator Core Row Quantity: 2
- Transcooler Provision: 0.125 in. NPT
