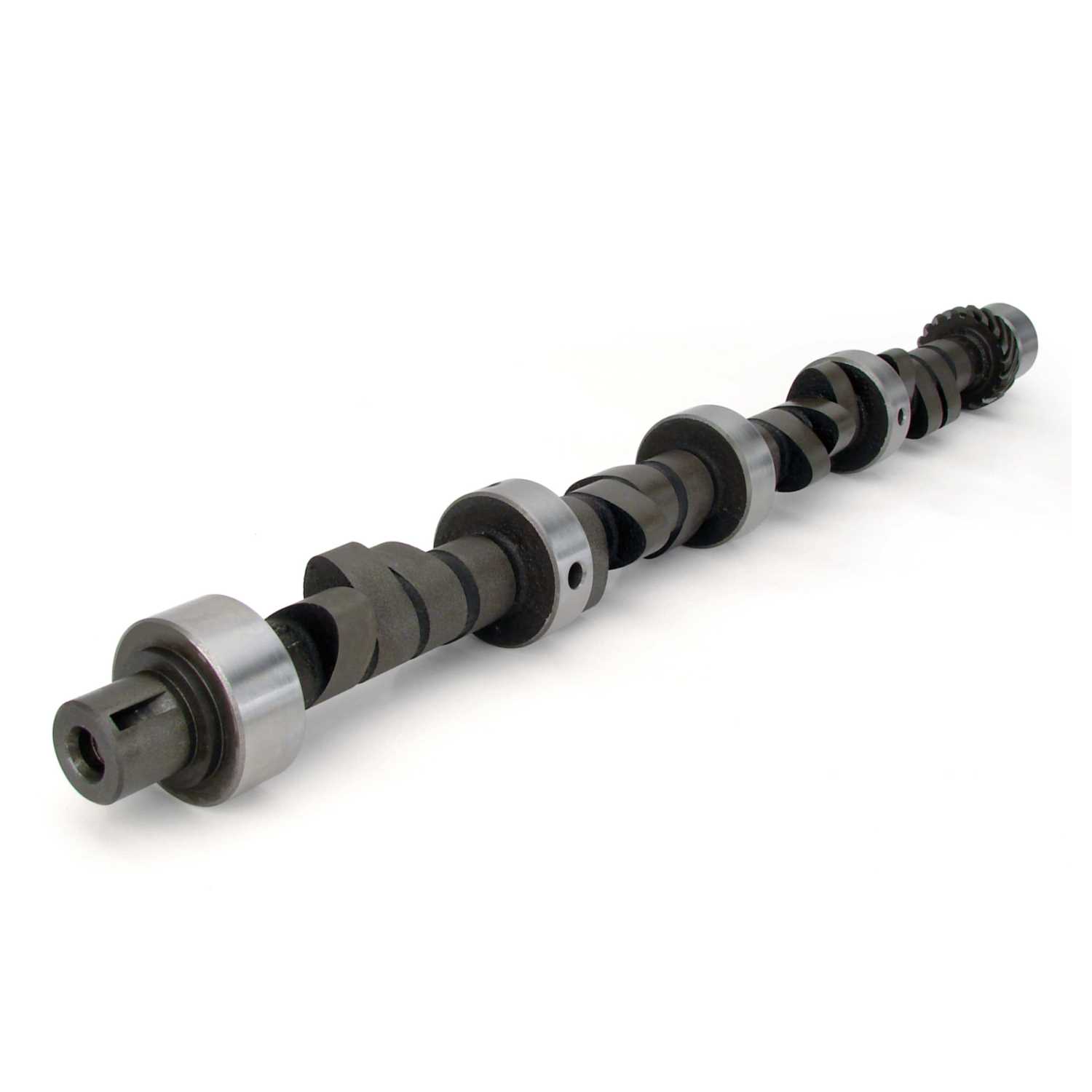

Wal rozrzadczy

CompCams : 20-247-4

Nr artykułu: COM20-247-4

* Solid Flat Tappet * Basic Operating RPM Range 3,000-6,000 * Advertised Duration 282/282 * Valve Lift 0.495/0.495 * Chrysler 273-360 c.i. 8 Cylinder (1964-2002)

Opis

340-360 street machine/bracket race with 2500 stall, 9.5:1-10.5:1 compression and 3.91 to 4.10 gear. Aftermarket manifold & 650-750 CFM carb.

Informacje o produkcie dostawcy

Advertised Exhaust Duration: 282 DD
Advertised Intake Duration: 282 DD
Amazon ASIN: B000P5GAQS
Assembly Lubricant Included: Yes
Basic Operating RPM Range: 3,000-6,000 R3
C.A.R.B. E.O. Number: N/A
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exemption Reason: N/A
Cam and Lifter Kit Upgrade: CL20-247-4
Cam Type: Solid Flat Tappet
Camshaft Gear Attachment: 1-Bolt
Camshaft Material: Cast Iron
Camshaft Series: Magnum
Engine Family: Chrysler 273-360 c.i. 8 Cylinder (1964-2002)
Exhaust Duration at .050 inch Lift: 236 DD
Exhaust Valve Lift: 0.495 IN
Grind Number: 282S
Intake Duration at .050 Inch Lift: 236 DD
Intake Valve Lift: 0.495 IN
K-Kit Upgrade: K20-247-4
Lifter Type: Solid Flat Tappet
Lifters Included: No
Lobe Separation: 110 DD
SK-Kit Upgrade: SK20-247-4
Title: Magnum 236/236 Solid Flat Cam for Chrysler 273-360
Usage: Street/Strip
Valve Springs Required: Yes
