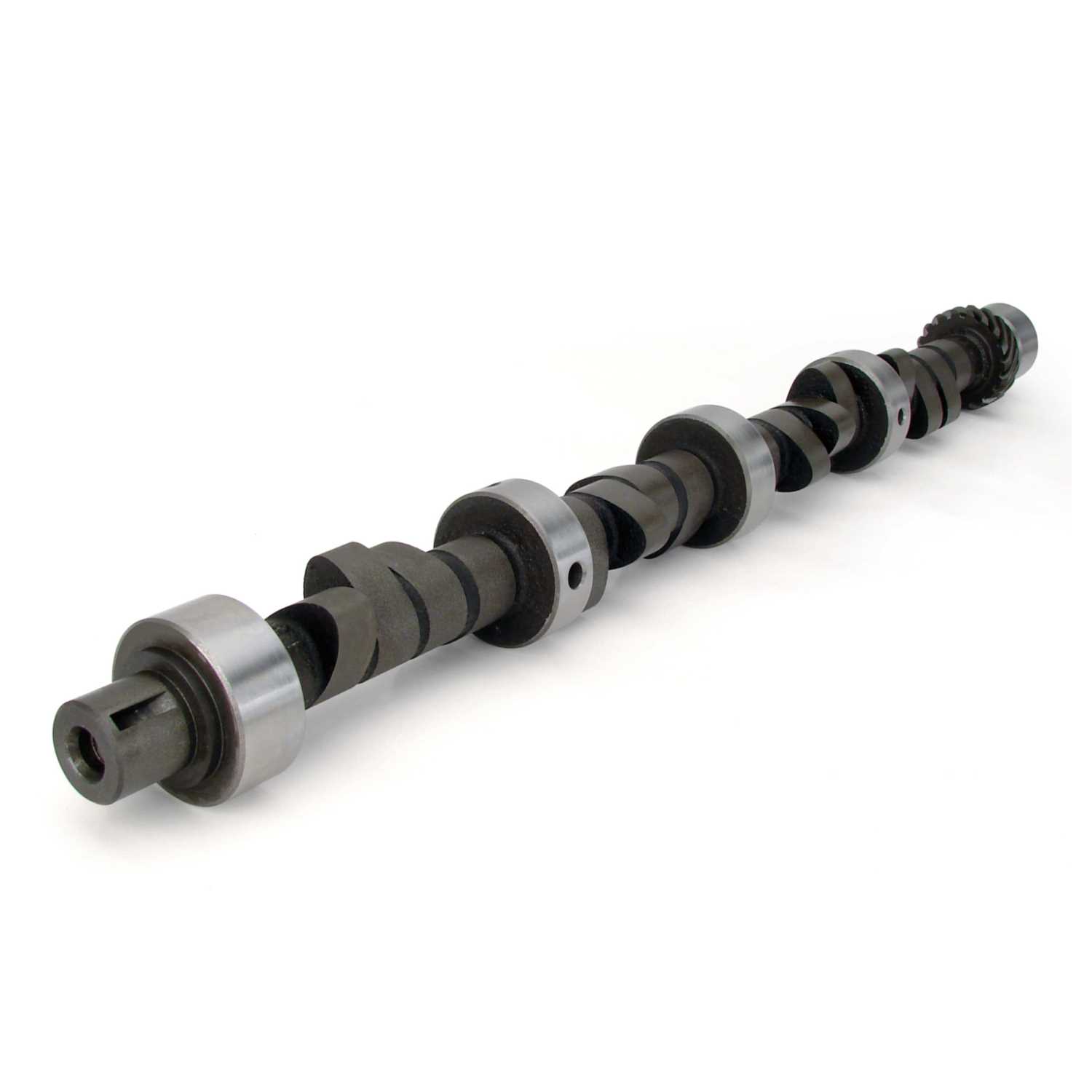

Wal rozrzadczy

CompCams : 20-309-4

Nr artykułu: COM20-309-4

* Hydraulic Flat Tappet * Basic Operating RPM Range 1,800-5,800 * Advertised Duration 268/276 * Valve Lift 0.464/0.464 * Chrysler 273-360 c.i. 8 Cylinder (1964-2002)

Opis

Factory I.D. 2899206 for: 340c.i., 1968-71, factory 275 HP; 340c.i., 1970, factory 290 HP; 340c.i., 1972-73, factory 240 HP.

Informacje o produkcie dostawcy

Advertised Exhaust Duration: 276 DD
Advertised Intake Duration: 268 DD
Amazon ASIN: B000P5G824
Assembly Lubricant Included: Yes
Basic Operating RPM Range: 1,800-5,800 R3
C.A.R.B. E.O. Number: N/A
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exemption Reason: N/A
Cam and Lifter Kit Upgrade: CL20-309-4
Cam Type: Hydraulic Flat Tappet
Camshaft Gear Attachment: 1-Bolt
Camshaft Material: Cast Iron
Camshaft Series: Magnum Muscle
Engine Family: Chrysler 273-360 c.i. 8 Cylinder (1964-2002)
Exhaust Duration at .050 inch Lift: 226 DD
Exhaust Valve Lift: 0.464 IN
Grind Number: 268AH-10
Intake Duration at .050 Inch Lift: 222 DD
Intake Valve Lift: 0.464 IN
Lifter Type: Hydraulic Flat Tappet
Lifters Included: No
Lobe Separation: 110 DD
Title: Magnum Muscle 222/226 Hydraulic Flat Cam for Chrysler 273-360
Usage: Street/Performance
Valve Springs Required: Yes
