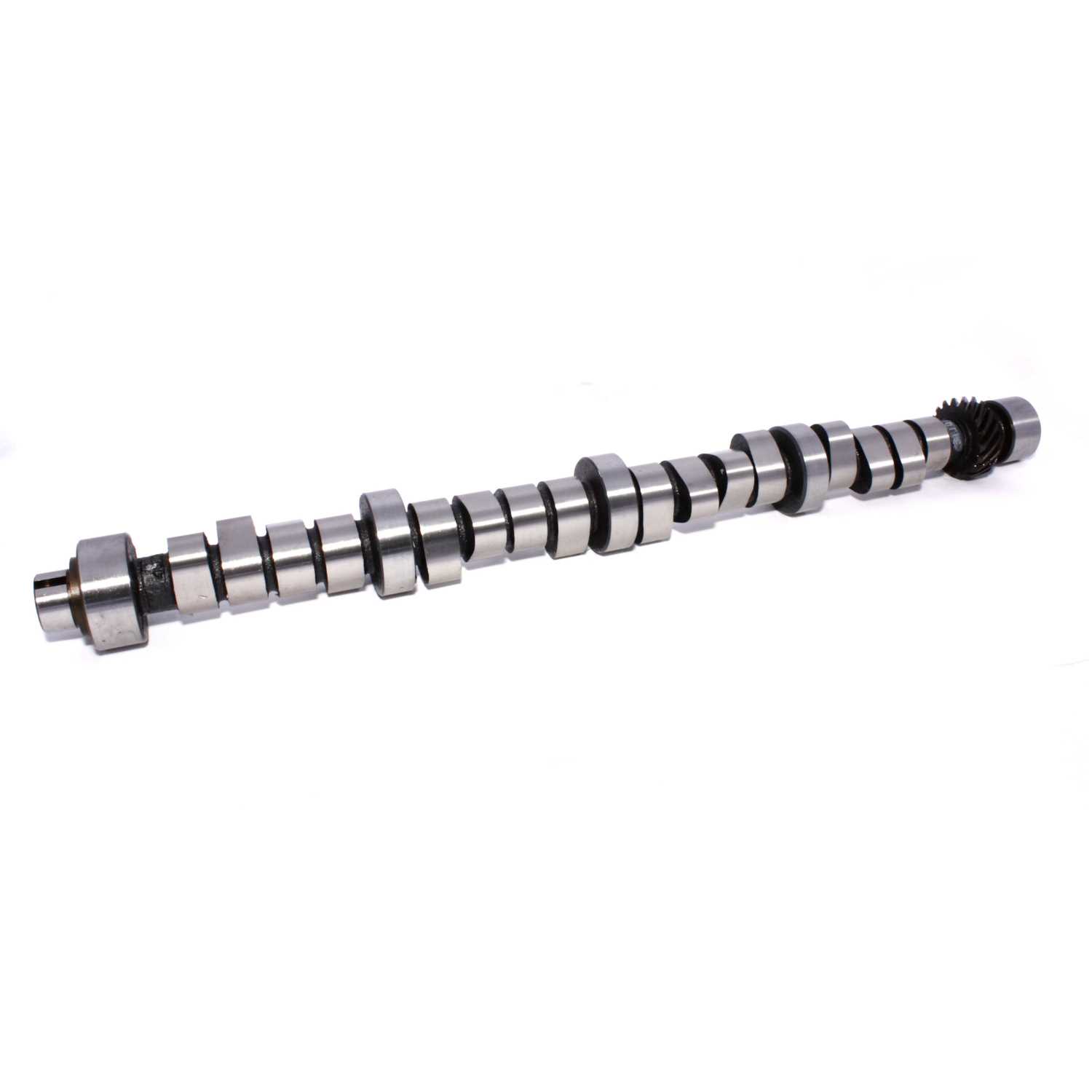

Wal rozrzadczy
CompCams : 20-602-9
Nr artykułu: COM20-602-9
* Hydraulic Roller * Basic Operating RPM Range 800-5,000 * Advertised Duration 262/264 * Valve Lift 0.480/0.512 * Chrysler 273-360 c.i. 8 Cylinder (1964-2002)
Performance street cam for 318. Excellent torque in 360. May require computer modifications.
- Advertised Exhaust Duration: 264 DD
- Advertised Intake Duration: 262 DD
- Amazon ASIN: B001O0FNW0
- Assembly Lubricant Included: No
- Basic Operating RPM Range: 800-5,000 R3
- C.A.R.B. E.O. Number: N/A
- C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for On-Road Vehicles?: No
- C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
- C.A.R.B. Exemption Reason: N/A
- Cam Type: Hydraulic Roller
- Camshaft Gear Attachment: 1-Bolt
- Camshaft Material: Billet Steel
- Camshaft Series: Computer Controlled
- Engine Family: Chrysler 273-360 c.i. 8 Cylinder (1964-2002)
- Exhaust Duration at .050 inch Lift: 210 DD
- Exhaust Valve Lift: 0.512 IN
- Grind Number: 262HR-12
- Intake Duration at .050 Inch Lift: 206 DD
- Intake Valve Lift: 0.48 IN
- Lifter Type: Hydraulic Roller
- Lifters Included: No
- Lobe Separation: 112 DD
- Title: Computer Controlled 206/210 Hydraulic Roller Cam for Chrysler Magnum
- Usage: OEM
- Valve Springs Required: Yes
- Make: Mopar
- Block type: Small Block
- Engine Family: Chrysler 273-360 c.i. 8 Cylinder (1964-2002)
- Type: Hydraulic
- Type: Roller Lifter
- Operating RPM From: 800 RPM From
- Operating RPM to: 5000 RPM To
- Duration intake: 262 Duration intake
- Lift intake: 480 Lift intake
- Lift exhaust: 512 Lift exhaust
