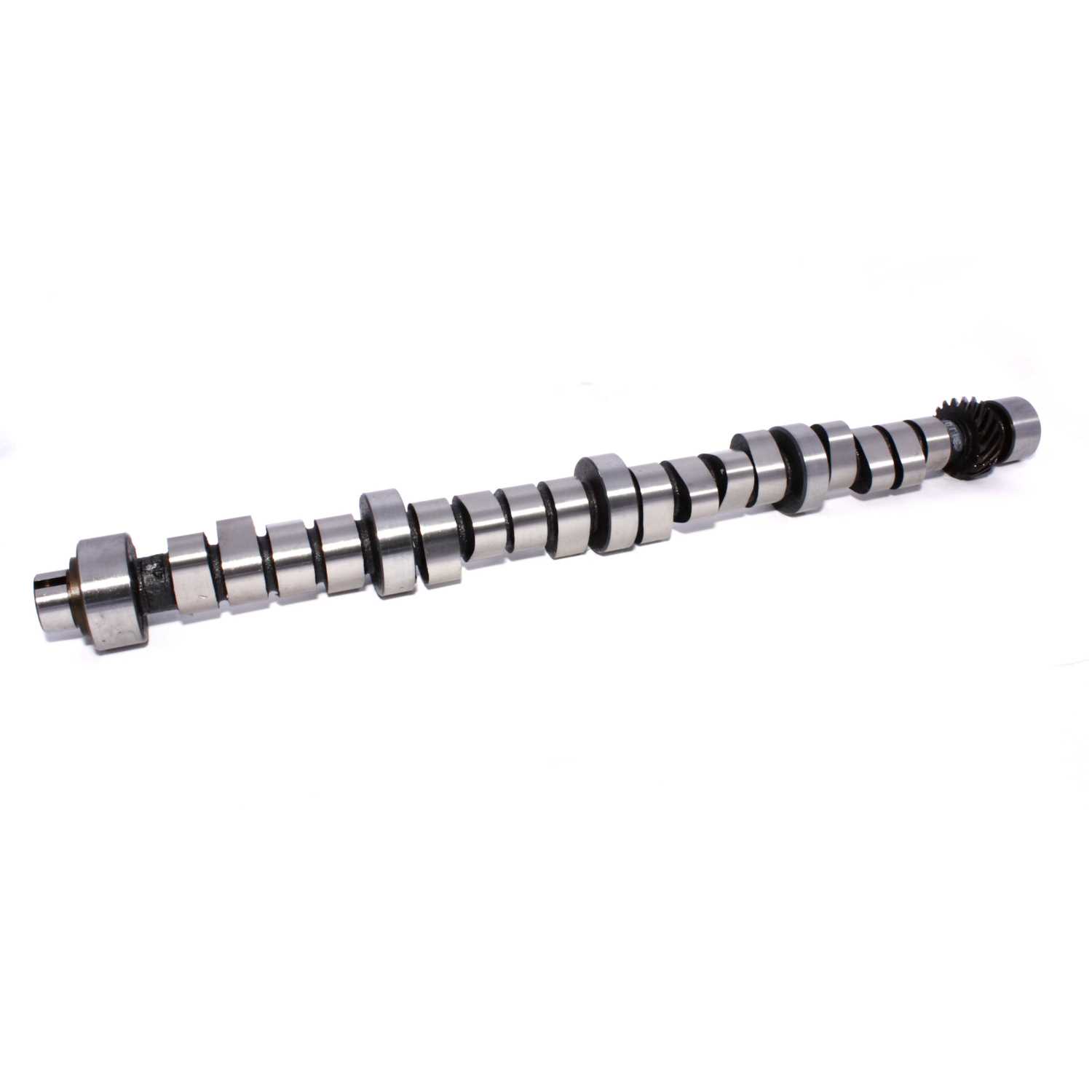

Wal rozrzadczy
CompCams : 20-608-9
Nr artykułu: COM20-608-9
* Hydraulic Roller * Basic Operating RPM Range 700-4,800 * Advertised Duration 254/262 * Valve Lift 0.480/0.480 * Chrysler 273-360 c.i. 8 Cylinder (1964-2002)
Factory replacement for 318 with strong torque.
- Advertised Exhaust Duration: 262 DD
- Advertised Intake Duration: 254 DD
- Amazon ASIN: B001O09Z56
- Assembly Lubricant Included: No
- Basic Operating RPM Range: 700-4,800 R3
- C.A.R.B. E.O. Number: N/A
- C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for On-Road Vehicles?: No
- C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
- C.A.R.B. Exemption Reason: N/A
- Cam Type: Hydraulic Roller
- Camshaft Gear Attachment: 1-Bolt
- Camshaft Material: Billet Steel
- Camshaft Series: Computer Controlled
- Engine Family: Chrysler 273-360 c.i. 8 Cylinder (1964-2002)
- Exhaust Duration at .050 inch Lift: 206 DD
- Exhaust Valve Lift: 0.48 IN
- Grind Number: 254HR-12
- Intake Duration at .050 Inch Lift: 199 DD
- Intake Valve Lift: 0.48 IN
- Lifter Type: Hydraulic Roller
- Lifters Included: No
- Lobe Separation: 112 DD
- Title: Computer Controlled 199/206 Hydraulic Roller Cam for Chrysler Magnum
- Usage: OEM
- Valve Springs Required: Yes
- Make: Mopar
- Block type: Small Block
- Engine Family: Chrysler 273-360 c.i. 8 Cylinder (1964-2002)
- Type: Hydraulic
- Type: Roller Lifter
- Operating RPM From: 700 RPM From
- Operating RPM to: 4800 RPM To
- Duration intake: 254 Duration intake
- Lift intake: 480 Lift intake
- Lift exhaust: 480 Lift exhaust
